A. Principal of technology

Technology to realize high-magnetic-field magnets using 2G HTS superconducting wires

•

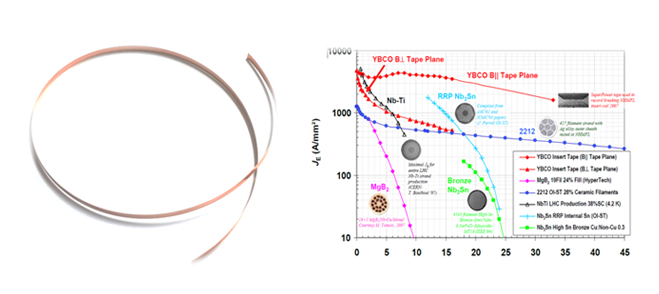

  2G Superconducting wire

•

•

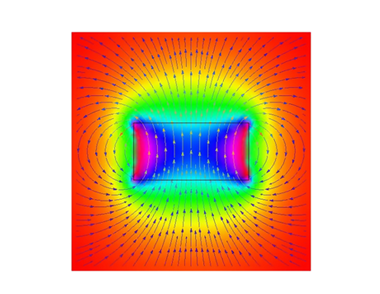

  High field magnet

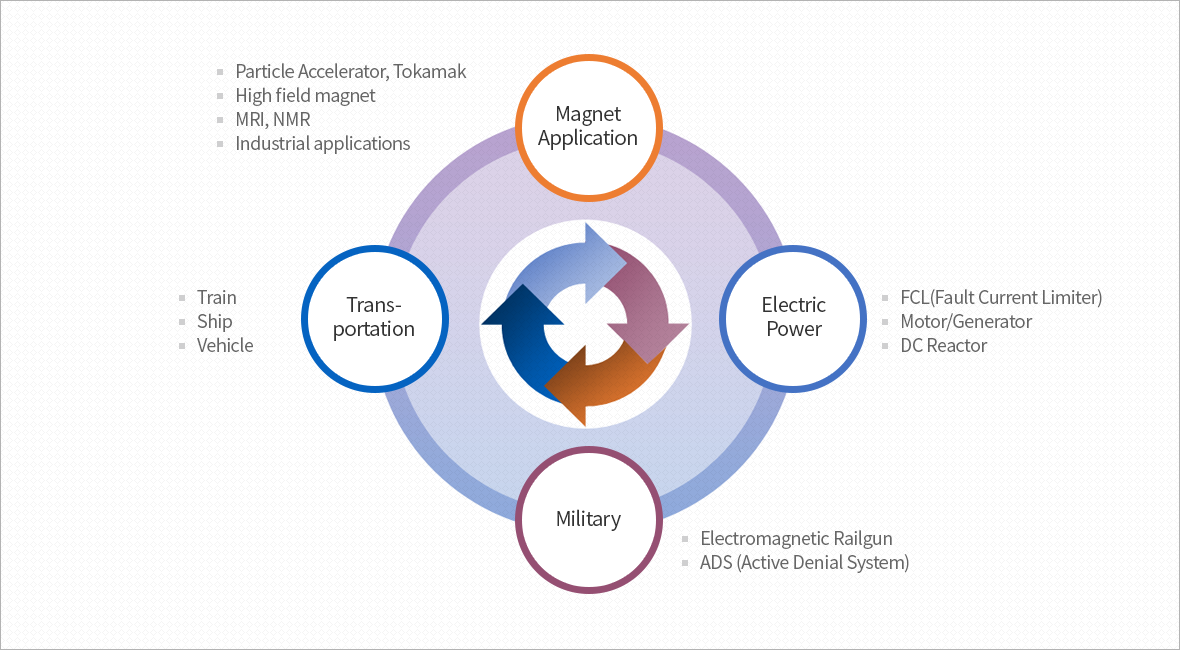

B. Applications

C. Technology of SuperGenics

• 1. Magnet design

  • Multi-physics FEM analysis for magnet design
  • 2G HTS magnet design (any shapes of coil)
  • Coil bobbin design
  • Cryogenic cooling path design

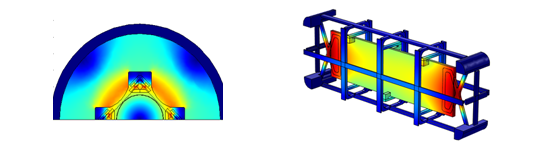

  FEM analysis

• 2. Magnet manufacturing

  • 2G HTS winding technique
  • High stability Metal Insulation Co-winding
  • Low resistance HTS joint
  • HTS current lead



  Coil winding



  Joint

• 3. Magnet performance evaluation

  • Precise critical current measurement
  • Magnet field mapping



  Cooling path



  HTS current lead
